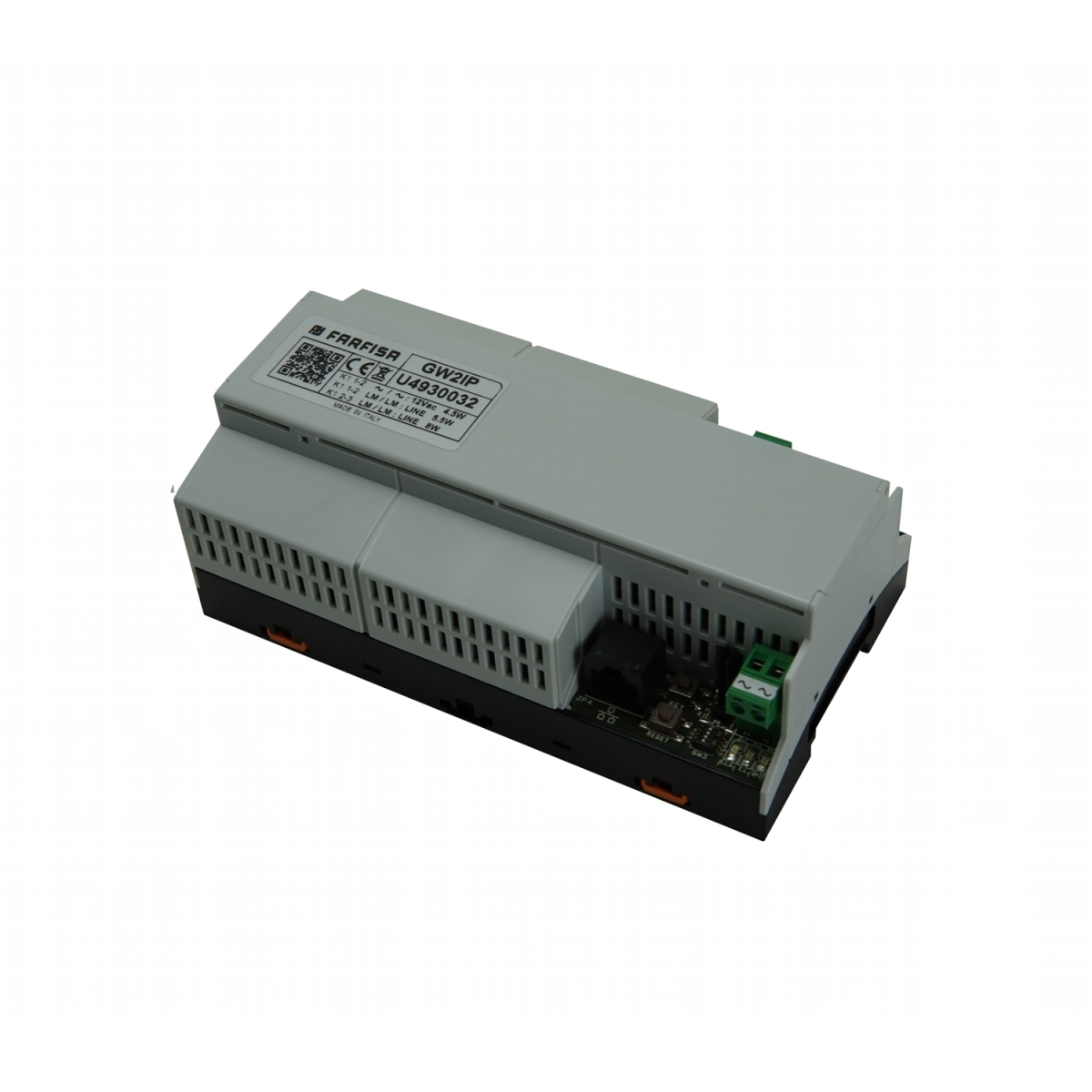

Gateway module that interfaces the Duo system to the IP world, expanding its functionality.

Among the features: it allows to forward the video call to user's mobile phone, talk with the visitor and control the access even remotely without limits of distances. The system is based on the Farfisa cloud service developed specifically to make installation, use and maintenance of the system as simple as possible. The gateway can be used not only for single-family installations, but also within one or more apartments of a multi-family system or as a shared device between all the apartments of the same system; in all cases the availability of an Internet connection, wired or wireless, is required. Each user can associate multiple mobile devices (Smartphone or Tablet) which will therefore activate simultaneously with the arrival of the call; only the user who first answers the call will be able to talk to the visitor and open the lock. The system also integrates the video memory function. The IPWAY CLOUD application is available for both Android and iOS systems in the respective stores.

The GW2IP gateway can be powered either via the DUO bus or separately with a local power supply. In the latter case, when sizing the system, it is necessary to take into account a certain current draw from the bus for the video section as shown in the technical specifications below. The container can be installed on a DIN bar (9 modules).

Ready for a single user, additional users can be added upon request.


READ
instruction manual

INFO
pedir informacion

VIEW
dynamic pdf



Gateway interface Duo System-IP -GW2IP


DOWNLOAD

installation
DOWNLOAD
MANUAL BREVE
DOWNLOAD

VIDEO


WiFi connection


Configuration of GW2IP and invitation of new users


main
characteristics

working temperature range: 0/40°C

functions

actuator activation: Yes
auto switch-on activation: Yes
video modulator activation: Yes
video memory: Yes

technical
features

supply voltage: from the DUO bus or 12Vca
max current consumption: 8W

dimensions

height cm. 6
width cm. 16
depth cm. 9
