TVT86VFAHD/5

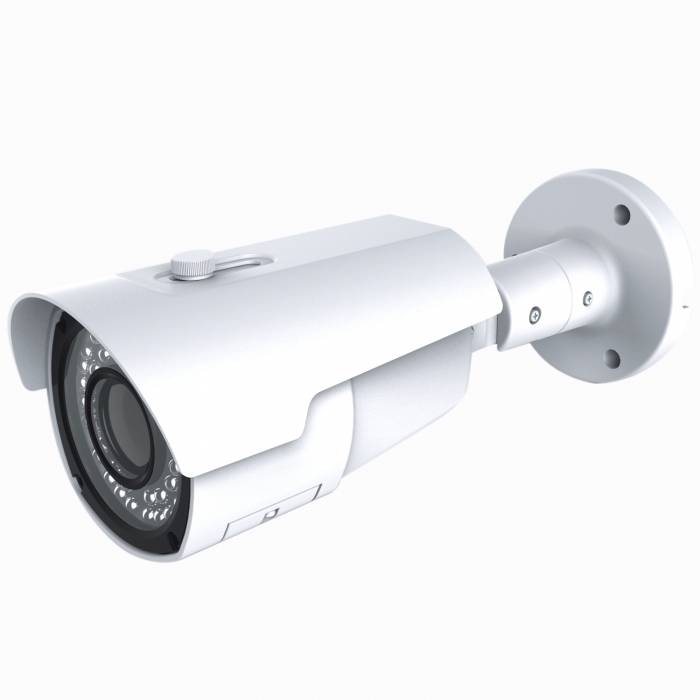

5MP AHD VARIFOCAL CAMERA - TVT86VFAHD/5
Day&Night AHD camera with varifocal 2.8-12mm lens and modern waterproof case (IP66). The new CMOS sensor 1/2.7" of 5.0MP joined with AHD technology provides highest resolutin pictures and compatibility with coaxial cable transmission. The 24 IR led's and the ICR filter removable guarantee nice pictures even in low-illumination conditions. For correct picture displaying and recording it is recommended to connect this camera to video recorders capable to support AHD 5MP signals such as HVR42/5, HVR82/5, HVR162/5. The brief guide on the below link explains how to switch the video output among AHD/TVI and analogue (for version without dipswitches on the cable).
DOWNLOAD
CERTIFICAZIONI
DOWNLOAD
DOWNLOAD
MANUALE BREVE
DOWNLOAD
DOWNLOAD
CARATTERISTICHE
PRINCIPALI
materiale: Aluminium
montaggio
a parete: Wall/ceiling
a parete: Wall/ceiling
colore: White
grado IP: IP66
tipo telecamera: CMOS 1/2.7" sensor
risoluzione: 2592x1944 pixel
sensibilità: 0.01lux
ottica: varifocal
focale: 2.8-12mm
FUNZIONI
CARATTERISTICHE
TECNICHE
tensione di alimentazione: 12Vdc
assorbimento massimo di corrente: 500mA
DIMENSIONI
altezza cm. 8,4
profondità cm. 24
