Proximity reader module Alba range. Conceived as stand alone, even it can be installed in a composition of other modules and accessories of Alba series. Provided with 1 relay, with programmable timer. If it is in a Alba videointercom composition, it is able to manage outputs of the main audio-video Alba module or even up to 4 remote actuators (art. 2281Q). Provided with Bluetooth technology for configuration and memorization of cards, while evolution of the project will include possibility to make access control through the same technology via smartphone. Memory capacity 2000 cards or transponders. Provided with 5 cards. Power supply via Duo bus or through PRS210 transformer in case of stand-alone installation.

instruction manual
request information
dynamic pdf

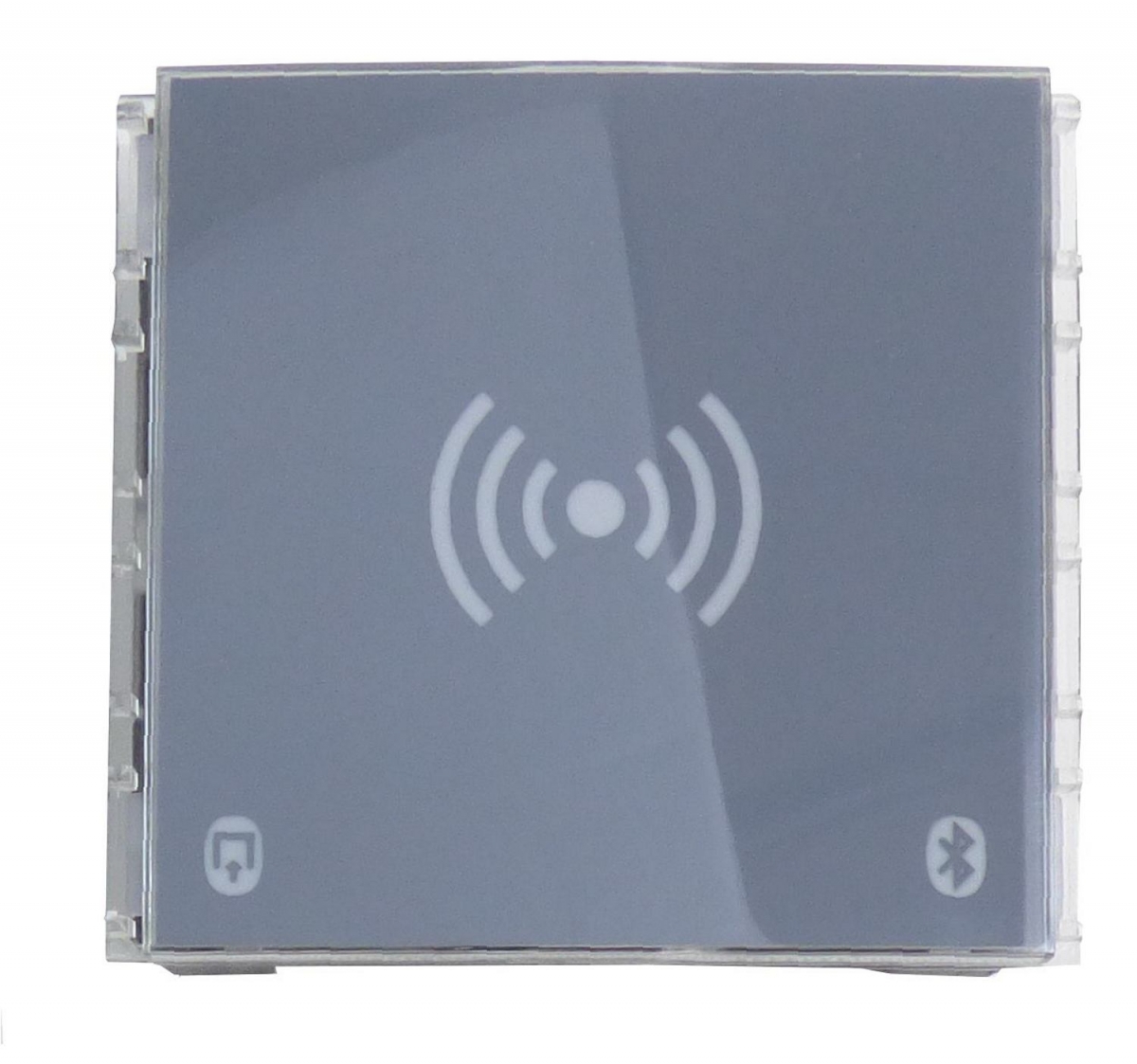

Proximity reader module Alba - FP51AB


App guide


Do you know that proximity reader is Bluetooth?


colour: grey
LED signaling: yes
modular: yes
back-lighting colour: white


RFID: yes
door opening confirmation: yes
system status: yes
door opening button: yes


supply voltage: via Duo bus or Vac


height cm. 9.9
width cm. 9.1
depth cm. 0.9
